Introduction

This article provides you with a step-by-step Elastic SIP Trunk Configuration on Twilio. In this guide FQDN is (telcobridges.pstn.twilio.com) configured in the Twilio console. You can find more details about how to create an Elastic Trunking in Twilio from the following link Create and Configure Trunks

Twilio Elastic SIP Trunk Configuration

From your Twilio Console, navigate to the Elastic SIP Trunking area ( or click on the Twilio sip icon.png icon on the left vertical navigation bar)



Twilio trunk.png

Create a new IP-ACL

Click on Authentication in the left navigation, and then click on IP Access Control Lists.



Twilio sip acl.png

In this example, an IP-ACL is created with the name: "MyExampleACL". Add your SBCs IP addresses to the IP-ACL you create.



Twilio myexample acl.png

Create a new Trunk

For each geographical region desired (e.g., North America, Europe), create a new Elastic SIP Trunk.

Now click on Twilio trunk icon.png again on the left vertical navigation bar, and create a new Trunk.

Twilio new trunk.png

Under the General Settings you can enable different features as desired

Twilio features.png

In the Termination section, select a Termination SIP URI.

Twilio termination.png

Click on "Show localized URI's" and copy and paste this information as you will use this on your SBC to configure your Trunk.

Twilio localized.png

or Assign the IP ACL ("MyExampleACL" ) that you created in the previous step.

Twilio authentication.png

In the Origination section, we'll add Origination URI's to route traffic towards your TelcoBridges SBC. The recommended practice is to configure a redundant mesh per geographic region (in this context a region is one of North America, Europe, etc). In this case, we configure two Origination URIs, each egressing from a different Twilio Edge.

Click on ‘Add New Origination URI’, we'll depict the configuration for North America:

Twilio orgination url.png

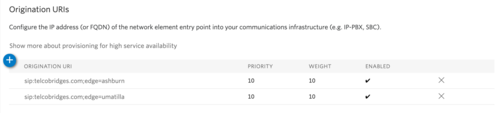

Continue to add the other Origination URIs if desired. Origination URIs are listed as follows:

Twilio orgination url 1.png

In this example, Origination traffic is routed via Twilio’s Ashburn edge, if that fails then we'll route from Twilio’s Umatilla edge.

Associate Phone Numbers on your Trunk

In the Numbers section of your Trunk, add the Phone Numbers that you want to associate with each Trunk. Remember to associate the Numbers from a given country in the right Trunk. For example, associate US & Canada Numbers with the North American Trunk and European Numbers with the European Trunk etc.

Twilio numbers.png
