Toolpack v2.3:Adding a E1/T1/J1 Line Interface

Note: To add a line interface, the Tmedia unit must have a TDM module installed.

To add a line interface

1. Select Line Interfaces from the navigation panel.

2. Click Create New Line Interface from the Information panel.

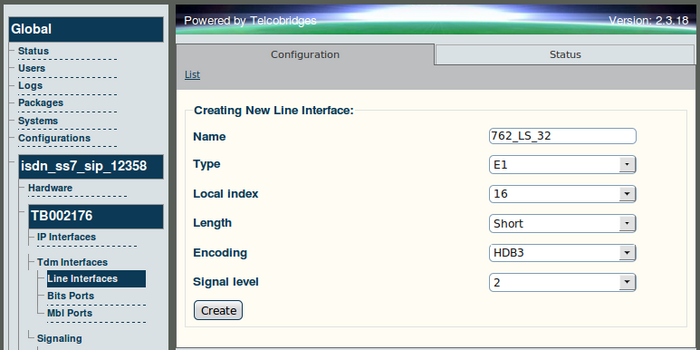

3. To create a T1/E1/J1 line interface:

• Enter a name for the line interface, and set the Line Type

• The local indexes for trunks are zero-based values. This means that local index 0 is trunk 1 and local index 1 is trunk 2. Enter a local index number, assigning a different value to each T1/E1/J1 line interface.

• Enter a local index number, assigning a different index to each T1/E1/J1 line interface.

• Set the Line Length, Encoding and Signal Level

• Click Create

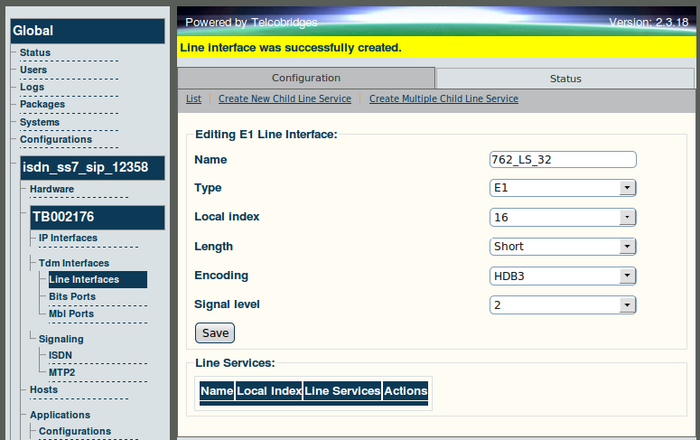

The 'Line Interface was successfully created' message is displayed.

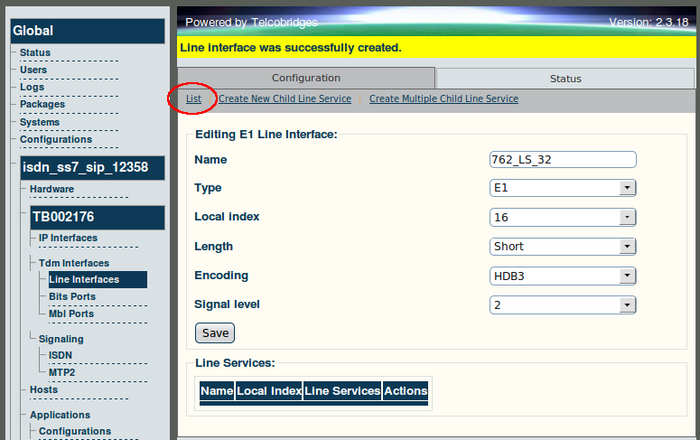

4. To view a listing of the line interfaces click List.

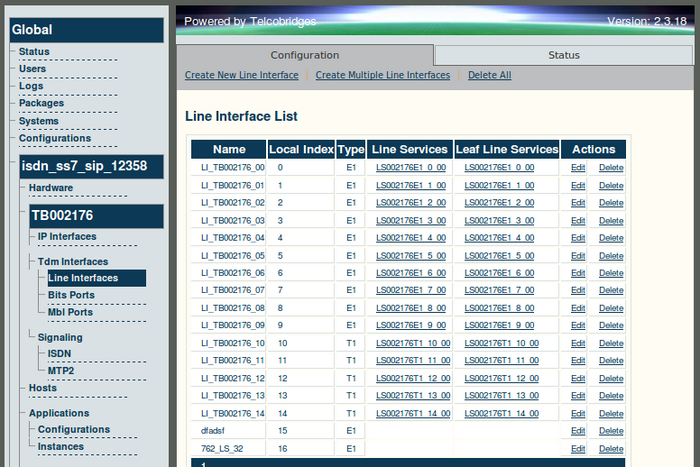

The Line Interface List is displayed.

Verifying Status

To verify the status of the line interface, either select Status from the Navigation panel or select the Status tab in the Information panel.
