Toolpack v2.3:Configuring E1/T1/J1 Line Services
From TBwiki
Line services correspond to the payload content of physical lines, therefore in order to configure a Line Service for a line interface, the line interfaces should already have been configured.
To create a line service
1. Select Line Interfaces from the navigation panel.

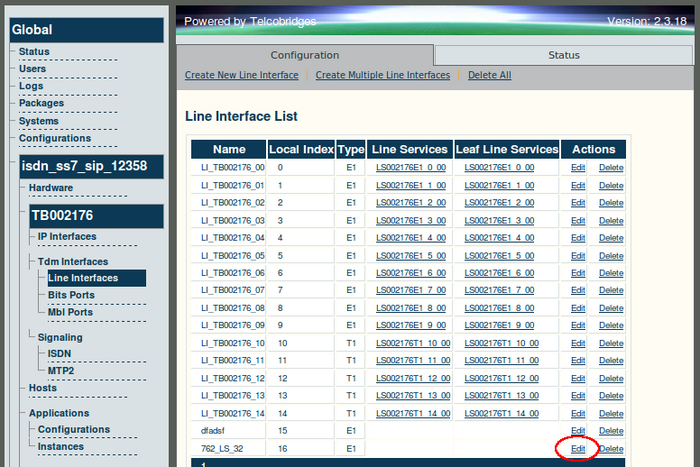

2. Click 'Edit' next to the line service

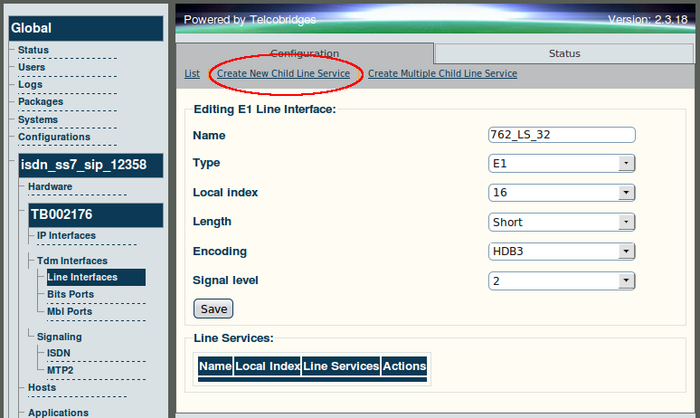

3. Click 'Create New Child Line Service' from the Line Interface Information panel.

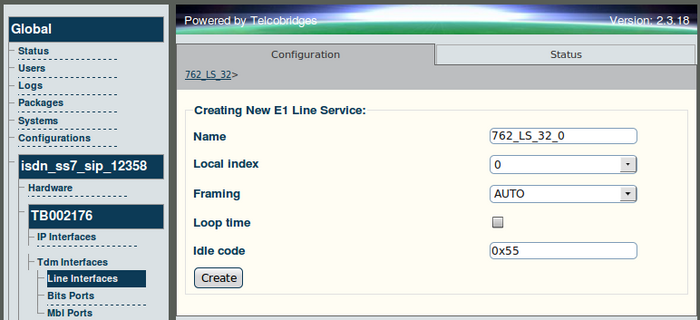

4. Enter a name for the line service and click 'Create'.

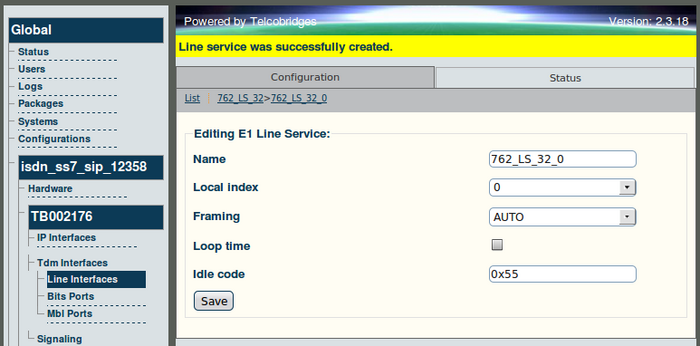

5. The resulting line service is displayed in the information panel.
6. Repeat this procedure for each T1/E1/J1 line that you will use.
Verifying Status
To verify the status of a line service, either select Status from the Navigation panel or select the Status tab in the Information panel.
