To create a TCAP stack

1. Select TCAP from the navigation panel.


Navigation Panel v2.3 TCAP.png

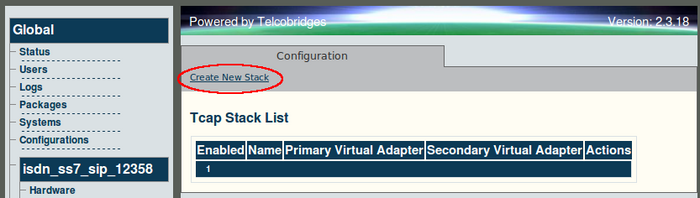

2. Click 'Create New Stack'


Web Portal v2.3 Create TCAP.png

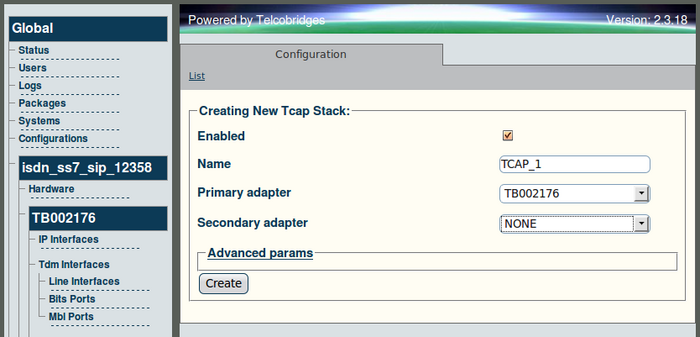

3. Provide a name for the TCAP stack

  • Select one Tmedia unit as the primary to run the TCAP stack for the Tmedia network.
  • Select another Tmedia unit as the secondary unit to run the TCAP stack
  • Click 'Create' to save the TCAP stack


Web Portal v2.3 Creating TCAP.png


4. Verify that the 'TcapStack was successfully created' message appears.


Web Portal v2.3 TCAP Created.png
