A MTP3 network is created to define its point codes, link sets and routes.

To create an MTP3 network

1. Click Create New MTP3 Network.

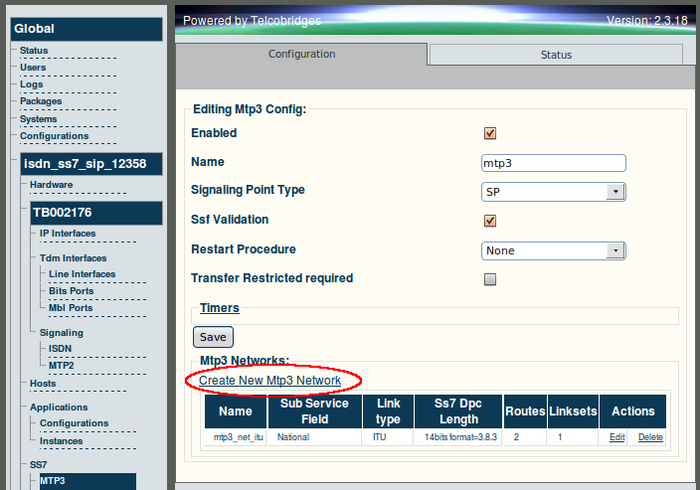

Web Portal v2.3 Create New MTP3 Network.png


2. Enter a name for the network and select the SS7 DPC length.

  • Click Create to store the settings

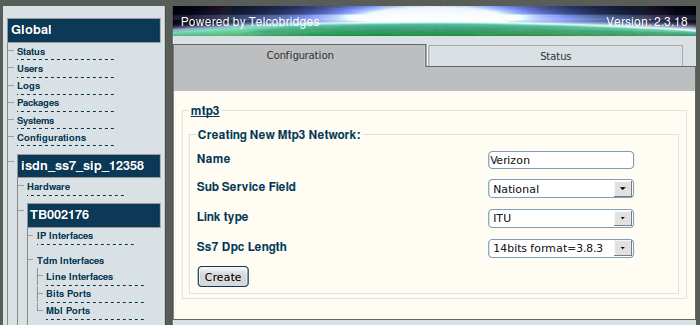

Web Portal v2.3 Creating New MTP3 Network.png


3. Verify that the "Mtp3Network was successfully created" message appears.


Web Portal v2.3 MTP3 Network Created.png
