Toolpack v2.3:Create an MTP3 Point Code

Point codes are used to define the Tmedia or Tdev system network, the adjacent network and the target network so that calls are properly routed from one network to the next.

Note: A minimum of two point codes need to be defined for the self and destination point codes.

To create an MTP3 point code

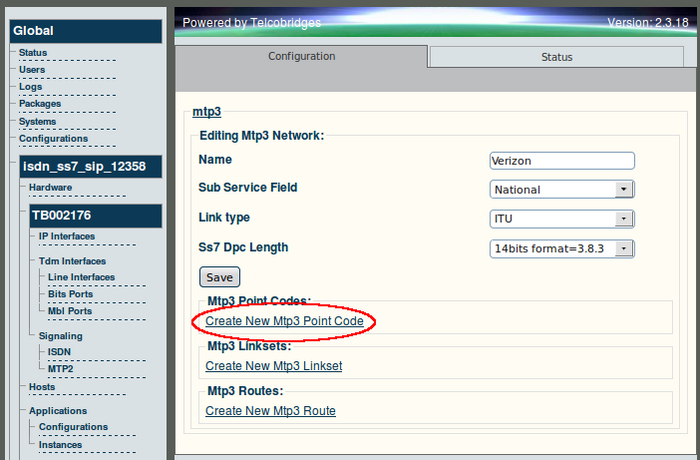

1. Click 'Create New MTP3 Point Code'

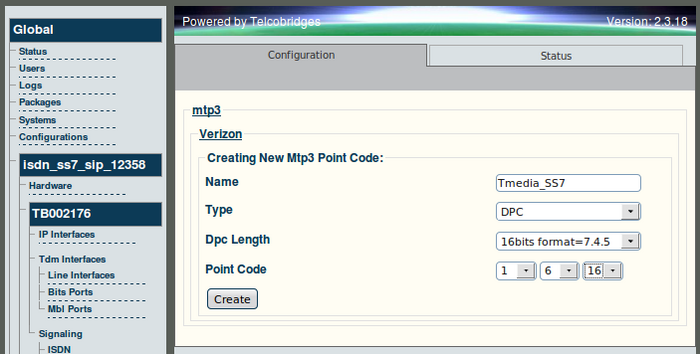

2. Provide a name for the point code. Click 'Create' to save the point code.

3. Verify that the MTP3 Point Code was successfully created message appears.

• In this example. one point code was created representing the Tmedia or Tdev SS7 node, referred to as the Self Point Code, one for the adjacent SS7 node (or equipment), and one for a distant target SS7 node in the SS7 network.
