Toolpack v2.3:Create an SCCP GTT Address Map

From TBwiki
Jump to: navigation, search

To Create a GTT Address Map

1. Click 'Create New GTT Address Map' from the GTT association configuration window

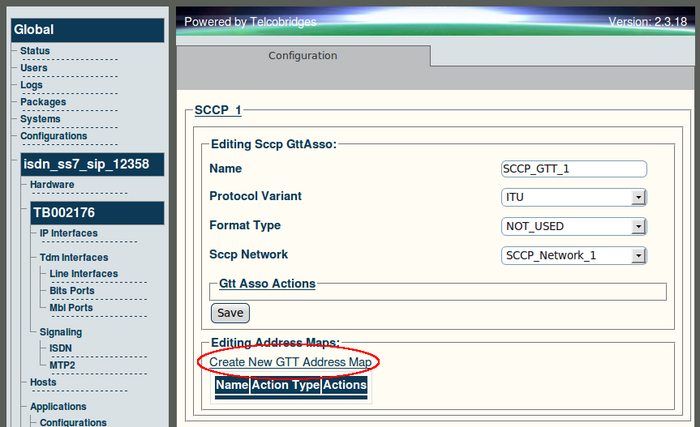

Web Portal v2.3 Create SCCP GTT Map.png

2. Configure the new GTT address map

  • Choose a name for the map
  • Choose an SCCP address for the global title
  • Choose a sub-system number for the entity
  • Choose an SCCP address for the entity global title
  • Click 'Create' to save the configuration

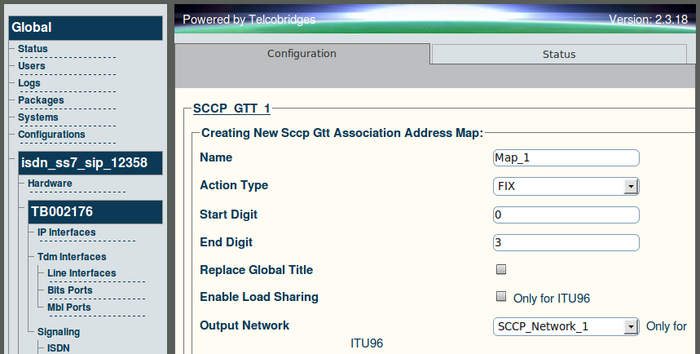

Web Portal v2.3 Creating SCCP GTT Map.png

3. Verify that the 'SccpGttAssoAddrMap was successfully created' message appears

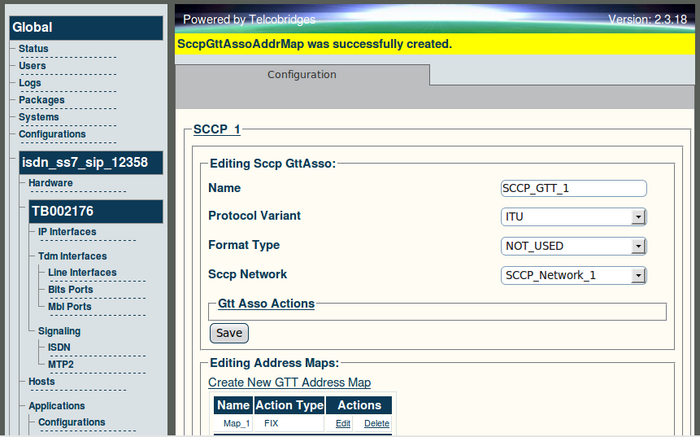

Web Portal v2.3 SCCP GTT Map Created.png
