Toolpack v2.3:Creating a SIP Profile

To create a SIP profile / system resource profile

1. Select Profiles from the navigation panel.

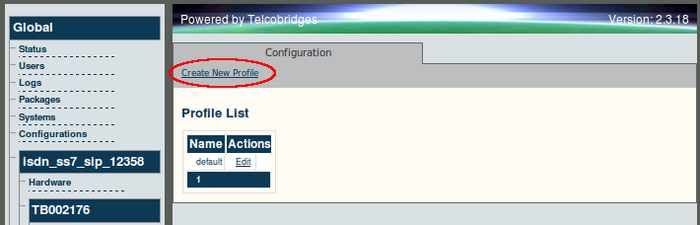

2. Click 'Create New Profile' from the information panel.

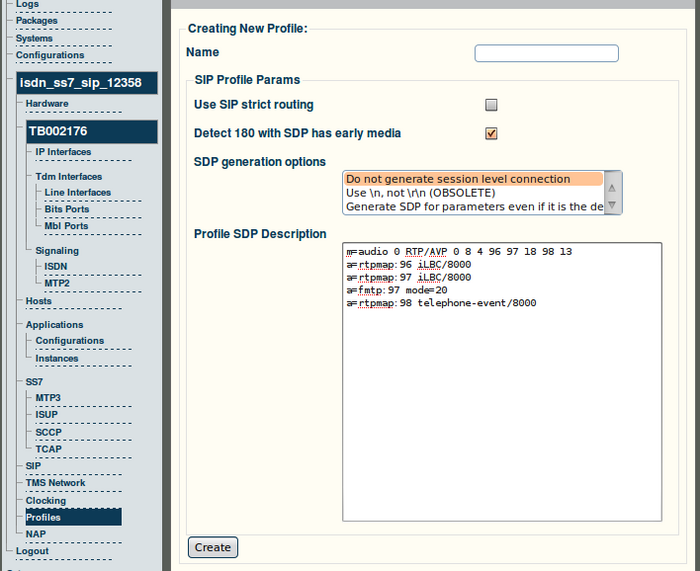

3. Enter a name for the profile. In this example PROXY_1 is entered.

• Select a SDP generation option. The SDP description appears in the Profile SDP window. To have a complete SDP definition, select "Generate SDP for parameters even if it is the default value"
• You may input a customized Profile SDP Description to define which codecs are allowed.
• Click 'Create' to save the changes

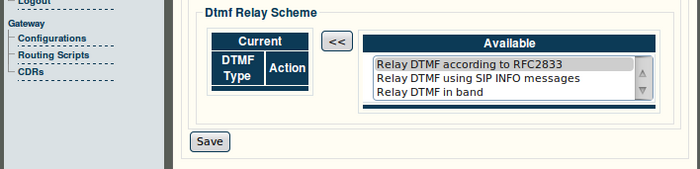

4. Select one or more DTMF-Relay relay schemes.

• Select one or more DTMF schemes then click the << button to assign them to the current profile
• Click 'Save'

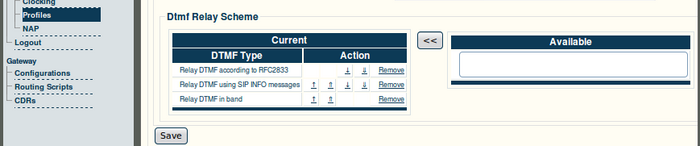

5. Validate the preferred order of DTMF relay schemes.

• Use the up and down arrow keys to set the preferred order of the DTMF-Relay scheme.
• Click 'Save'

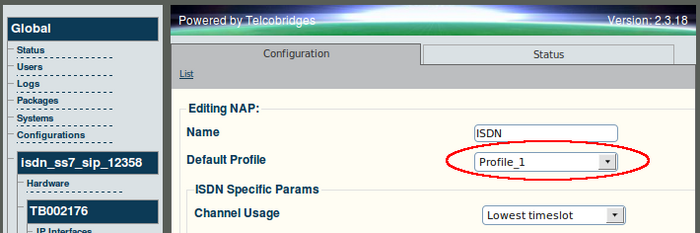

Note: Once a profile has been created, it can be assigned to one or more NAPs. See the figure below for an example:
