When you receive a new system, at least one hardware configuration will have been set in the Toolpack application server, by default. To add other hardware devices, you must use the Tmedia Web Portal.

Schematic showing 2 TMP6400 devices with an external server and a second machine with a web browser

To add one or more additional hardware devices to the Toolpack system configuration, their serial numbers must be registered with the Toolpack application server.


To add a hardware device

1. Select Hardware from the navigation panel.


Web Portal v2.4 Navigation Panel Hardware.png


2. Click Create New Hardware from the information panel, to add a new hardware device.

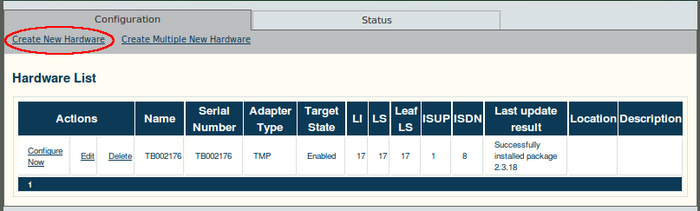

Web Portal v2.4 Create New Hardware.png


The Create New Hardware window is displayed.


3. Enter a name for the hardware device.

  • Enter the serial number of the new hardware device (filling in the Serial Number field will cause auto-completion of the field to occur).
  • Select "TMP" or "TMS" from the Adapter Type field.
  • Select "Enabled" from the Target State field.
  • Click "Create" to store your settings.

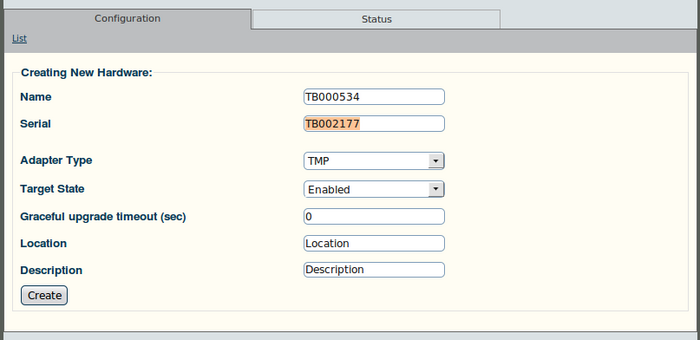

Web Portal v2.4 Creating New Hardware.png


The "List Hardware" window is displayed.


4. Verify that the newly added hardware device appears in the "List Hardware" window.

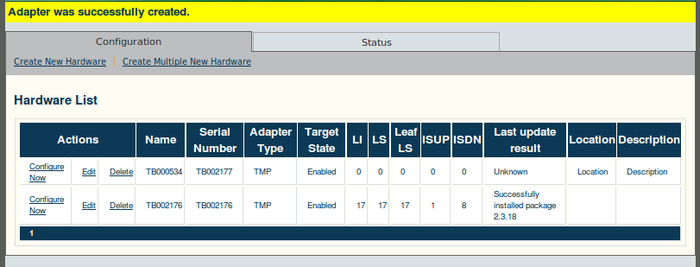

Web Portal v2.4 New Hardware Created.png

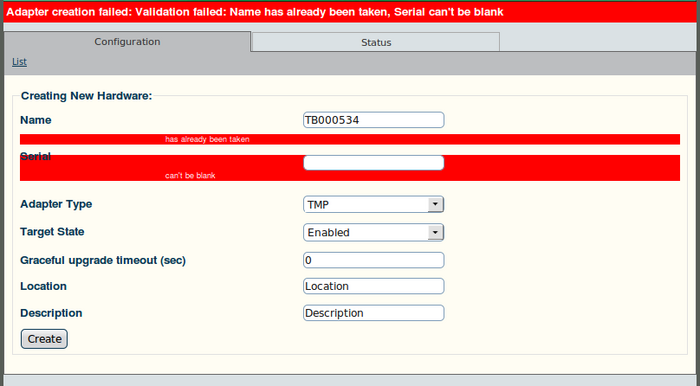

Should you omit necessary information, the Web Portal will display an error message as shown in the figure below.


Web Portal v2.4 New Hardware Failed.png
