Toolpack v2.4:Create M2UA Links

To create an M2UA link:

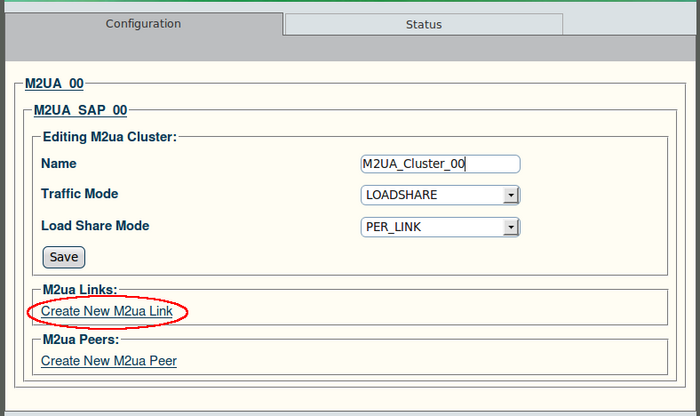

1. Click "Create New M2ua Link" in the M2UA cluster configuration window:

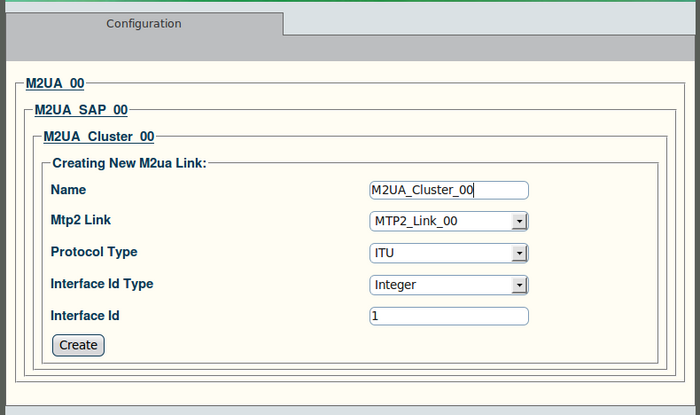

2. Configure the new M2UA link:

• Enter a name for the link
• Signaling gateway: Select a MTP2 link, Media gateway controller: Select NONE
• Select a protocol type (same as MTP2):
  • ITU
  • ANSI
  • TTC
• Select an interface ID type:
  • Integer
  • String
• Enter an appropriate interface ID (must be unique to each link)
• Click "Create" to finalize the configuration

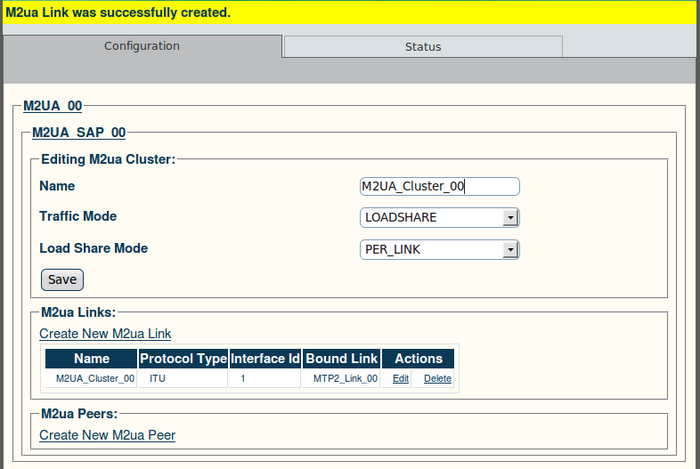

3. Verify that the "M2ua Link was successfully created" message appears:
