Toolpack v2.4:Create MTP2 Links

The MTP2 link is used to connect the MTP2 physical layer to a line service carrying SS7 signaling.

To create an MTP2 link:

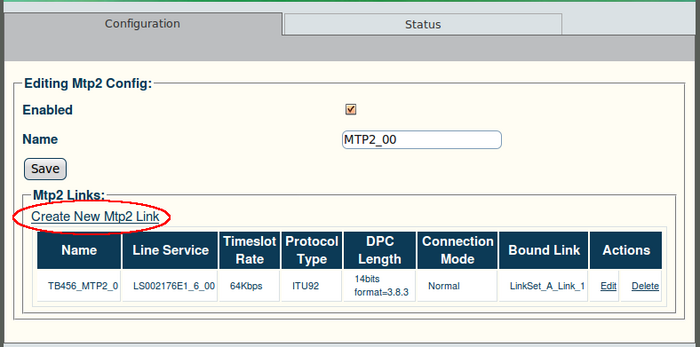

1. Click "Create New Mtp2 Link" in the MTP2 configuration window:

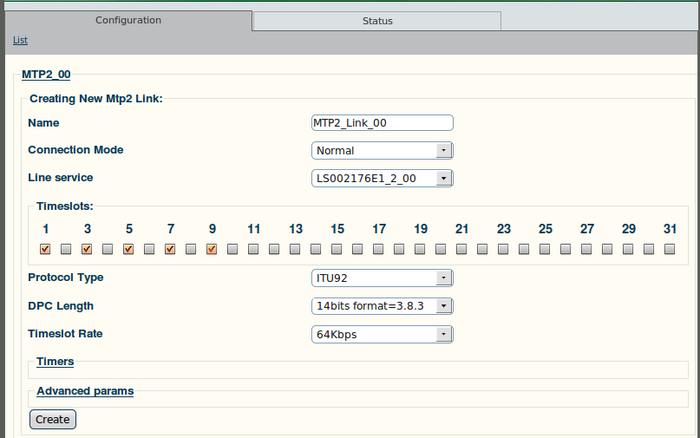

2. Configure the new MTP2 link:

• Enter a name for the new link
• Select a connection mode:
  • Normal
  • Hsl
• Select a line service
• Assign timeslots to the link
• Select a protocol type:
  • ITU92
  • ITU88
  • ANSI88
  • ANSI92
  • TTC
  • NTT
• Select a DPC length:
  • 16 bits
  • 24 bits
• Select a timeslot rate:
  • 64 Kbps
  • 56 Kbps
  • 48 Kbps
• Click "Create" to finalize the configuration

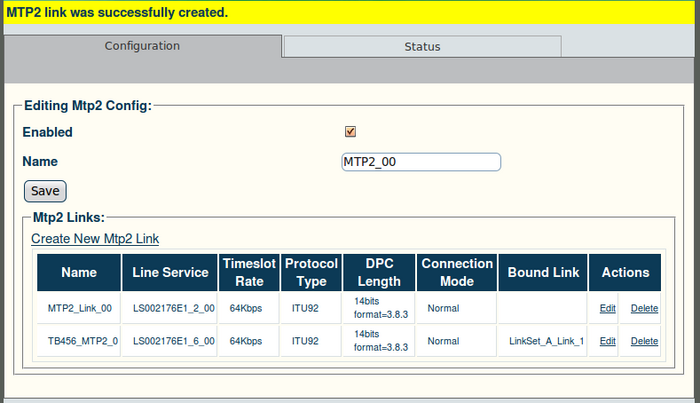

3. Verify that the "MTP2 link was successfully created" message appears:
