A linkset is used to logically combine multiple MTP3 links going to the same DPC into a single entity. One linkset could be the links between a point code identifying the Tmedia/Tdev SS7 node and a point code identifying the adjacent SS7 equipment.
To create an MTP3 link:

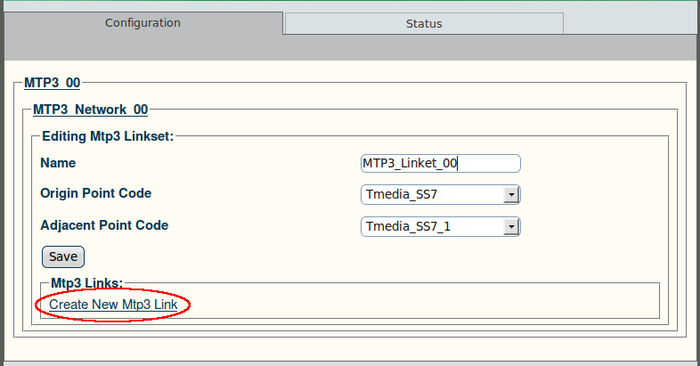

1. Click "Create New Mtp3 Link" in the MTP3 linkset configuration window:

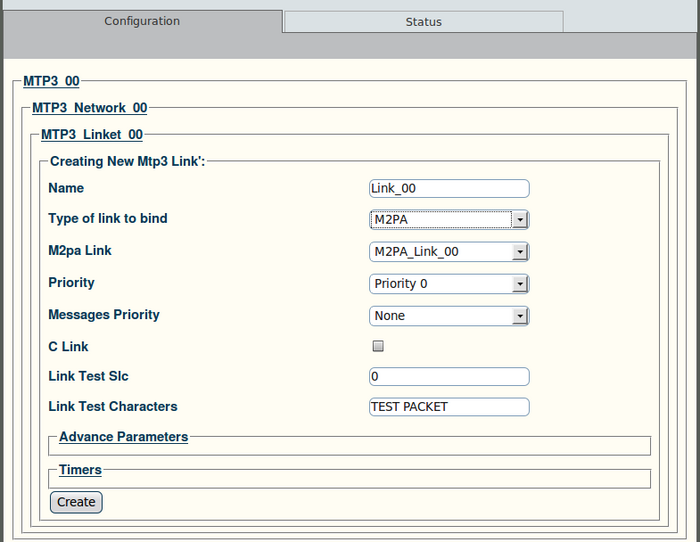

2. Configure the new MTP3 link:
- Enter a name for the link
- Under "Type of link to bind", select M2PA.
- Select an MTP2 link
- Select a priority level (from 0 to 3)
- Select a Messages priority (from "none" to 3)
- Set the C Link value
- Enter a Link Test Slc (this value is unique in the link list)
- Enter Link Test Characters
- Click "Create" to finalize the configuration

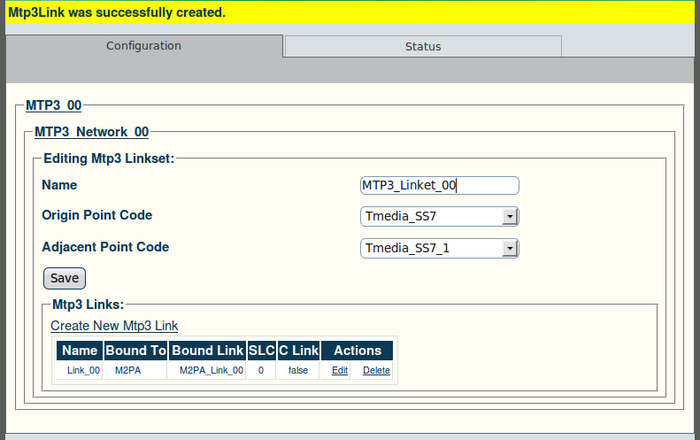

3. Verify that the "Mtp3Link was successfully created" message appears:
