To create an M2UA SAP:

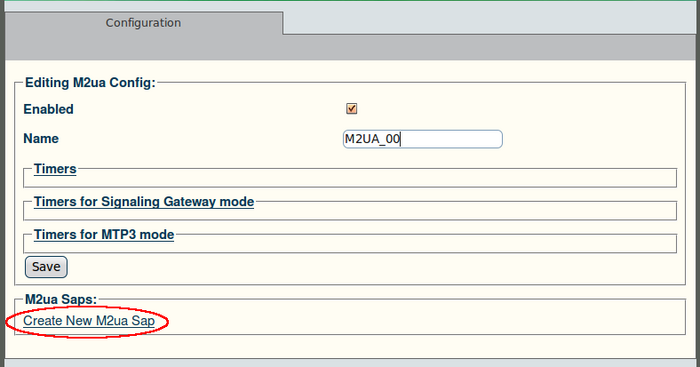

1. Click "Create New M2ua Sap" in the M2UA configuration window:

Web Portal v2.4 Create M2UA SAP.png

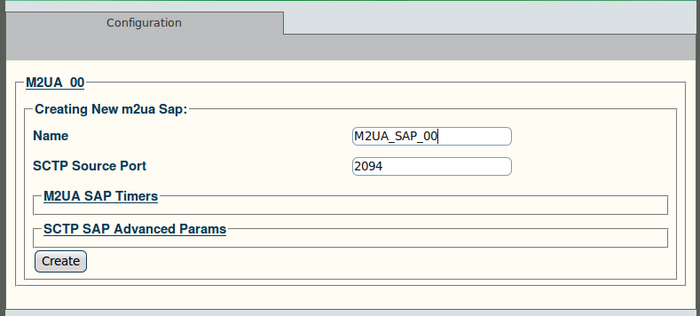

2. Configure the new M2UA SAP:

  • Enter a name for the new SAP
  • Enter a number for the SCTP source port
  • Click "Create" to finalize the configuration

Web Portal v2.4 Creating M2UA SAP.png

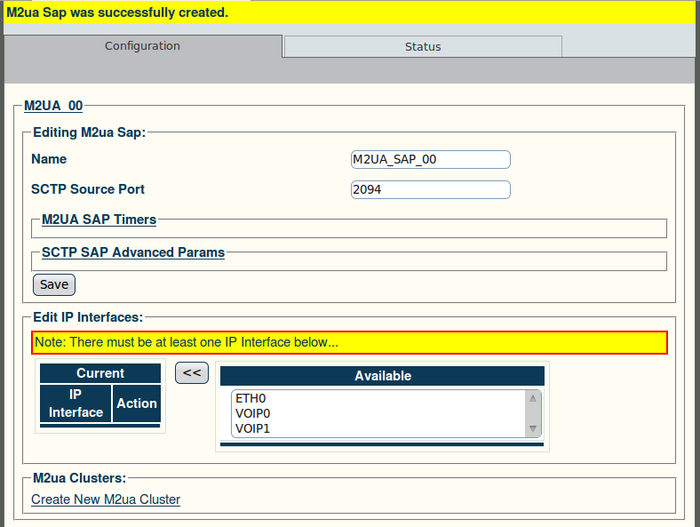

3. Verify that the "M2ua Sap was successfully created" message appears:

Web Portal v2.4 M2UA SAP Created.png

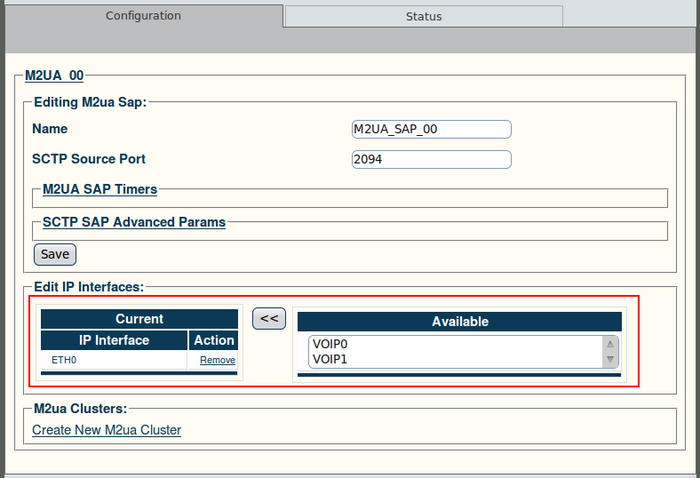

4. Associate an IP interface with the new SAP:

  • Select an IP interface from the "Edit IP Interfaces" list
  • Associate the interface with the SAP, using the "<<" button

Web Portal v2.4 M2UA SAP IP.png
