To create an ISUP network:

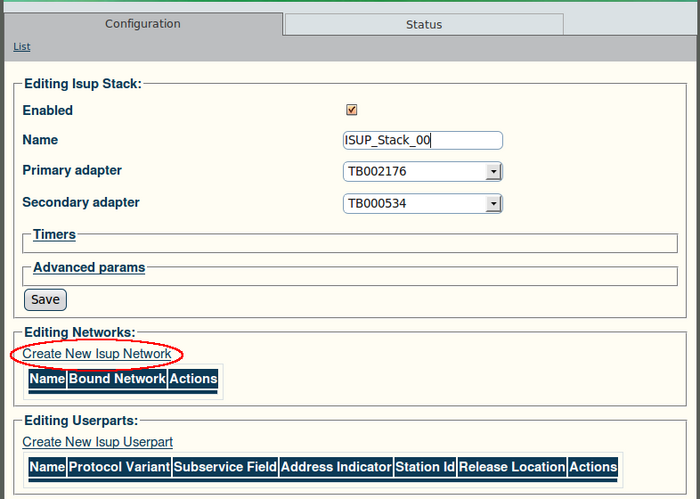

1. Click "Create New ISUP Network" in the ISUP stack configuration window:

Web Portal v2.4 Create ISUP Network.png

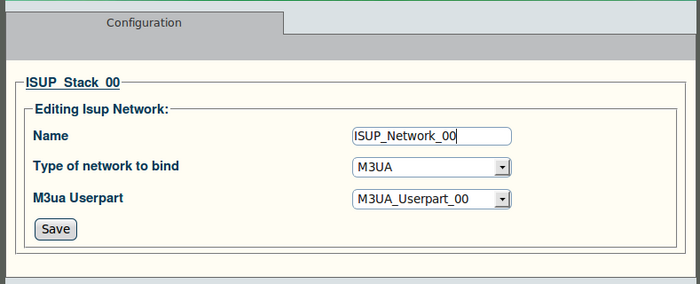

2. Configure the new ISUP network:

  • Enter a name for the network
  • Select M3UA as the type of network to bind
  • Select an M3UA userpart
  • Click "Create" to finalize the configuration

Web Portal v2.4 Creating M3UA ISUP Network.png

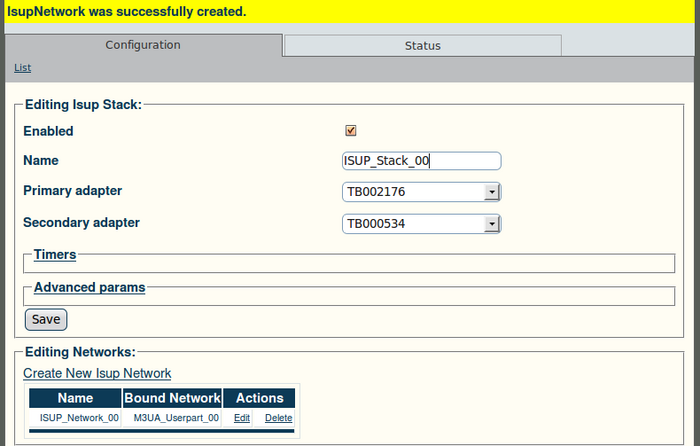

3. Verify that the "IsupNetwork was successfully created" message appears:

Web Portal v2.4 M3UA ISUP Network Created.png
