Toolpack v2.4:Create an M3UA Peer Signalling Process (SGP)

To create an M3UA Peer Signalling Process (PSP):

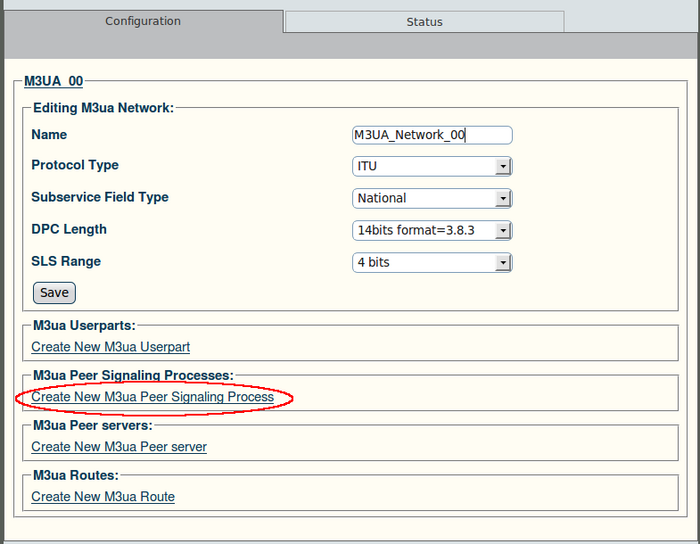

1. Click "Create New M3ua Peer Signaling Process" in the M3UA network configuration window:

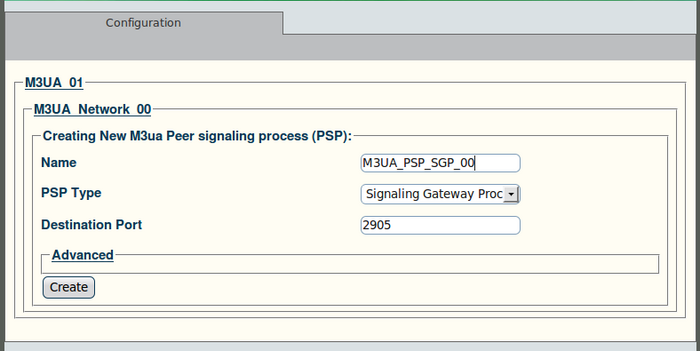

2. Configure the new M3UA PSP:

• Enter a name for the PSP
• Select "Application Server Process (ASP)" as the PSP type
• Enter a destination port
• Click "Create" to finalize the configuration

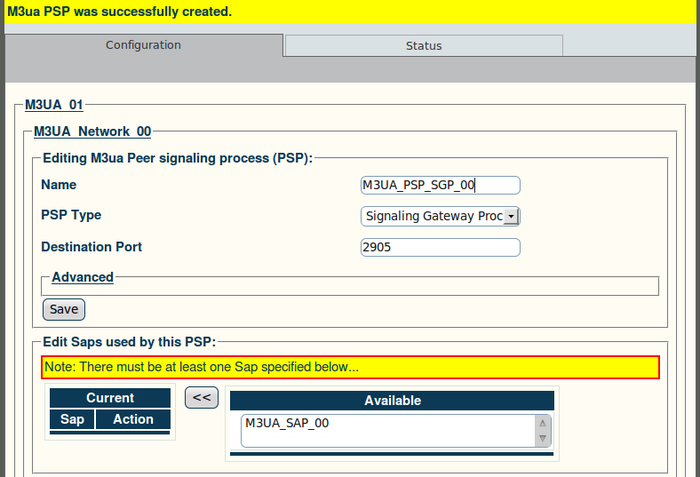

3. Verify that the "M3ua PSP was successfully created" message appears:

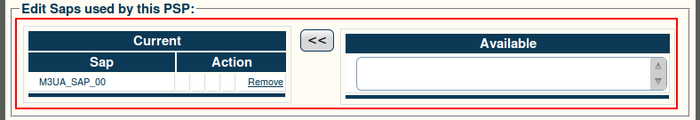

4. Associate a SAP with the new PSP:

• Select a SAP from the list of available SAPs
• Click the "<<" button to associate it with the PSP

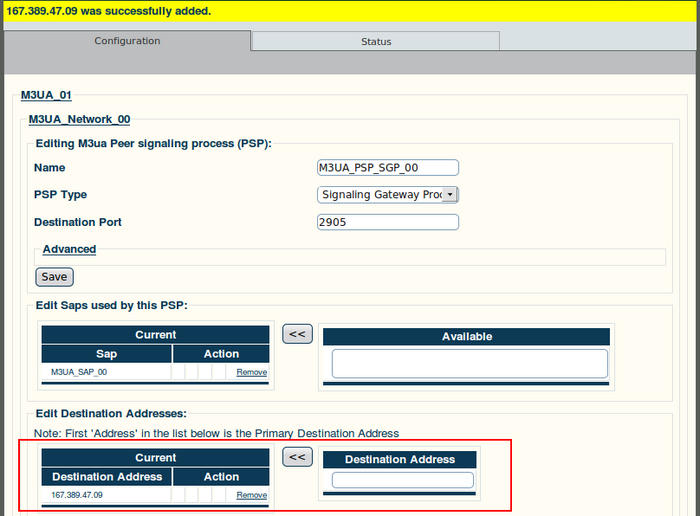

5. Enter a destination address for the PSP:

• Enter a destination address
• Click the "<<" button to add the destination address to the PSP
• Verify that the "(your address) was successfully added" message appears
