To create an M3UA user part:

1. Click "Create New M3ua Userpart" in the M3UA network configuration window:

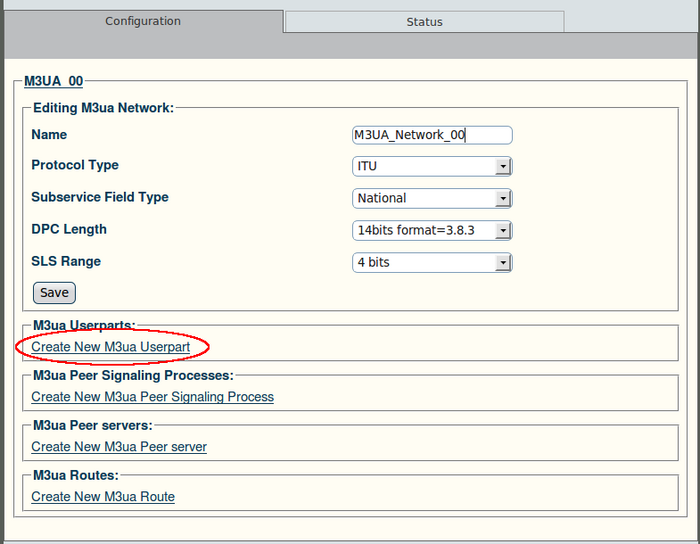

Web Portal v2.4 Create M3UA User Part.png

2. Configure the new M3UA user part:

  • Enter a name for the user part
  • SG: Select a MTP3 network, IPSP and ASP: This field is not visible.
  • Click "Create" to finalize the configuration

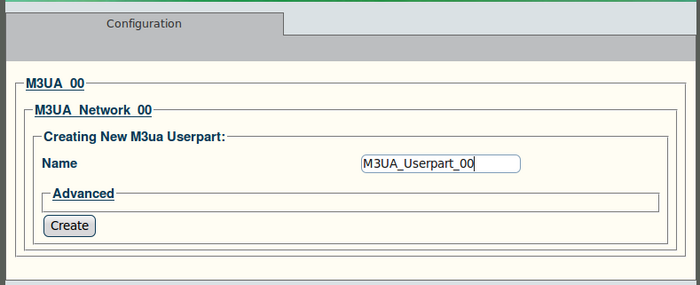

Web Portal v2.4 Creating M3UA User Part.png

3. Verify that the "M3ua Userpart was successfully created" message appears:

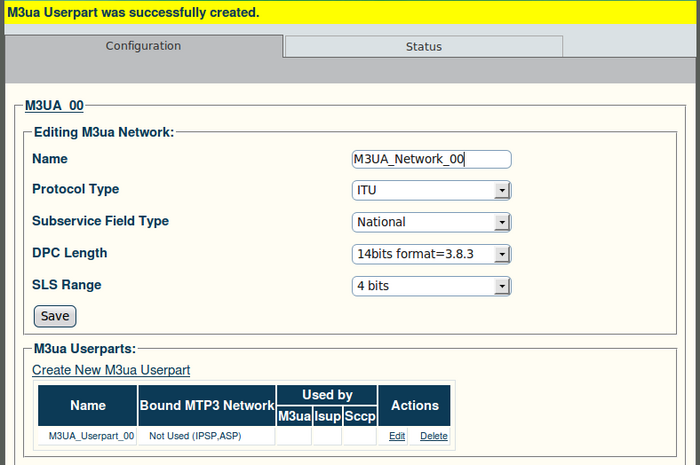

Web Portal v2.4 M3UA User Part Created.png
