M2PA replaces the MTP2 layer entirely; however, it still requires the MTP3 layer.

To create an M2PA configuration:

1. Select "M2PA" from the navigation panel:

Web Portal v2.4 Navigation Panel M2PA.png

2. Configure the new M2PA service:

  • Enter a name for the M2PA configuration
  • Change the "Timers" setting, if necessary
  • Click "Create" to finalize the configuration

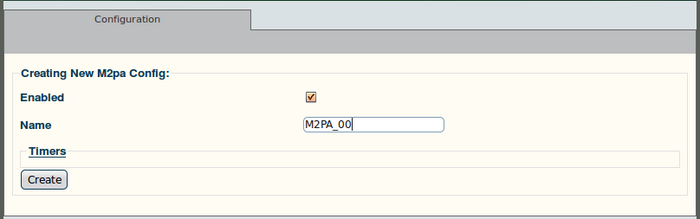

Web Portal v2.4 Creating M2PA.png

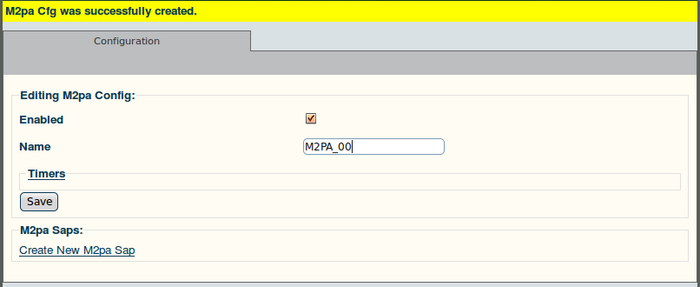

3. Verify that the "M2pa Cfg was successfully created" message appears:

Web Portal v2.4 M2PA Created.png
