IP Network Configuration Use Case:Management, Radius and H.248 on tagged VLAN, all through Voip ports, untagged SIP/RTP/Sigtran on separate IP

This article applies to:	Product	Version
	Tmedia	2.8, 2.9, 2.10, 3.0, 3.2

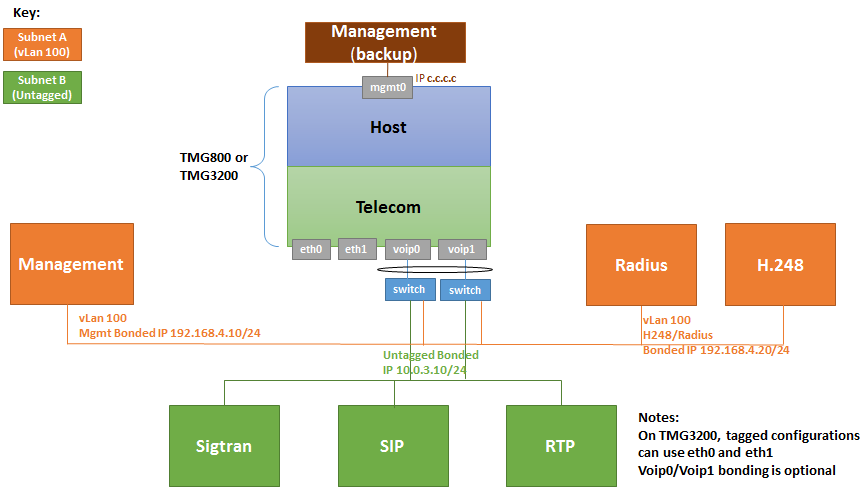

Two VLAN: tagged VLAN for management, radius and H.248, Untagged VLAN for SIP/RTP/Sigtran on separate IP, all through VoIP ports

Configure IP Network A Configure IP Network B Vlan 100 uses tagged bonded over VOIP0 and VOIP1 ports Create Virtual Port Create IP Address Vlan 200 uses tagged bonded over VOIP0 and VOIP1 ports Create Virtual Port Create IP Address Configure SIP Configure SIGTRAN Configure H.248 Configure RADIUS Configure SIP IP range parameters: Name: PORT_RANGE_VOIP IP Interface: VOIP_ADDRESS Minimum Port: 20000 Maximum Port: 30000 SIP transport server parameters: Port: 5060 IP Interface: VOIP_ADDRESS SIP NAP parameters: Proxy Address: 10.0.3.x/24 Port Range: PORT_RANGE_VOIP Configure SIGTRAN When you Configure H.248, set the following: Local IP Address and Public IP Address: 192.168.4.x/24 [Public IP or NAT public IP] When you Configure RADIUS, set the following: Source IP interface: RADIUS_100 Radius -> Radius Server Public IP Address: Empty
